KKF200/10-2 – Efficient filter press for vegetable oils, cooking oils
The KKF200/10-2 efficiently filters up to 300 L of plant oil per day. Equipped with 10–18 filter plates, 0.64–1.15 m² of filter surface, and 6–10 L chamber volume, it delivers consistently clean oil of high quality.
Operating at 230 V/1‑phase (optional 110 V), its compact dimensions (900×280×1050 mm) and weight of approximately 70 kg make integration into existing setups easy.
Durable, food-grade construction designed for continuous operation.
The package includes stainless steel piping, an 1800 L/h impeller pump, and a fine filter (known also as police filter).
Ideal for small to medium-scale oil mills and direct marketing operations.
Can be combined with an oil press, pumping tank, or other auxiliary equipment to create a fully integrated, small-scale oil production system.
Contact us for more and detailed information.
- Filtration capacity*: 300 L / ~24 h**
- Number of filter plates: 10 standard | expandable up to 18
- Filter area: 0.64 m² | 1.15 m²
- Chamber volume: approx. 6–10 L
- Voltage – standard model: 230 V / single-phase 50/60 Hz
- Voltage – special version: 110 V / two-phase 60 Hz
- Dimensions (L × W × H): 900 × 280 × 1050 mm
- Weight: approx. 70 kg
*Depending on sludge oil, sediment content, and temperature
**Based on rapeseed oil with 2% sediment content at 25 °C

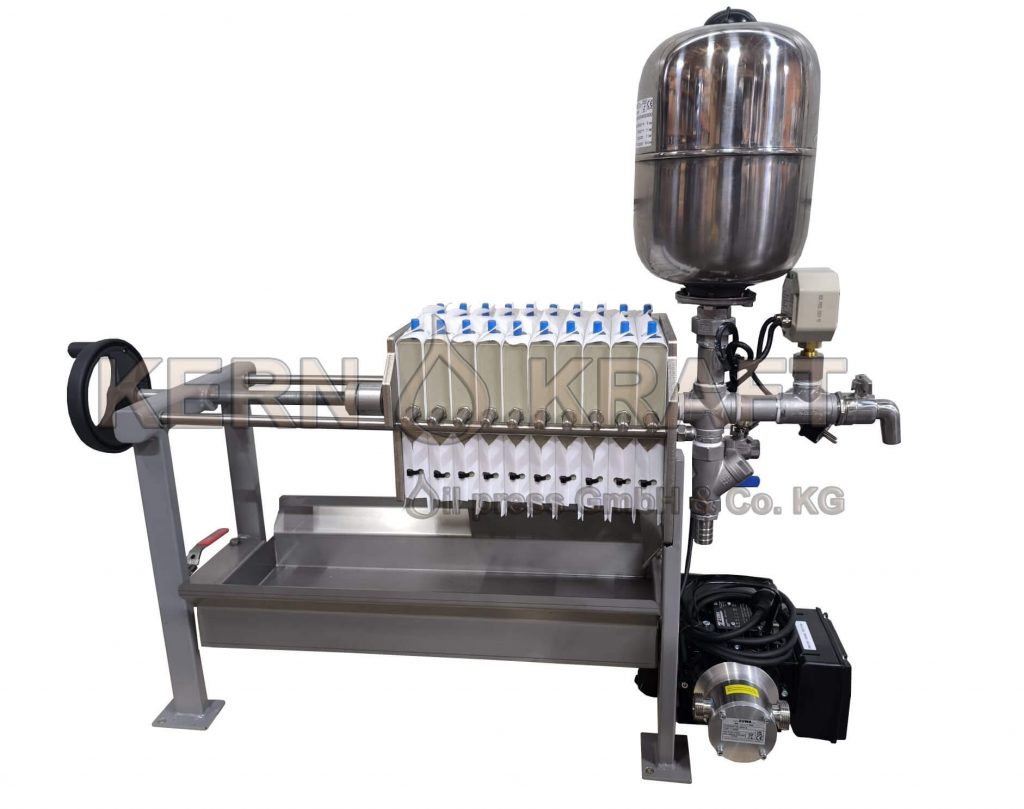

- Chamber filter press equipped with 10 filter plates (HDPP) & 10 reusable filter cloths (PP), electric pressure switch / manometer, cake tray in stainless steel, stainless steel piping, expansion vessel in stainless steel, food-grade
- Impeller pump max. 1800 L/h
- Cartridge filter housing (fine filter) with filter cartridge
- Electrical connection cable (plug-ready)
