Chamber filter presses / filtering machines / plate filters in all models
FILTERING FROM VEGETABLE OIL
We offer different sizes of filter systems for filtering oils. The filtrations cleans the oil and leads to a longer durability.
During or after the filtration, the oil can be cold refined, winterized or deodorized.

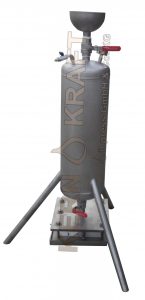

CHAMBER FILTER PRESS
kkf20
- Filter capacity*: 60 l / ~24 h**
- Volume: 20 l
- Number of filter plates: 2 ( expandable)
- Filter area: 0,1–0,2 m²
- Chamber volume: 1-2 l
- Voltage: 230 V 1-phase
- Dimensions (LxWxH): 350 x 350 x 1200 mm
- Weight: 35 kg
- Application: Filtration of crude oil
CHAMBER FILTER PRESS
KKF200/10-2
- Filter capacity*: 300 l / ~24 h**
- Number of filter plates: 10 ( expandable)
- Filter area: 0,64 m²
- Chamber volume: approx. 6 -10 l
- Voltage- Standard model: 230V/1-ph 50/60 Hz
- Voltage- Special version: 110V/2-ph 60 Hz
- Dimensions (LxWxH): 900 x 280 x 1050 mm
- Weight: approx. 70 kg
- Application: Filtration of crude oil
CHAMBER FILTER PRESS
KKF350/10-2
- Filter capacity*: 500 l / ~24 h**
- Number of filter plates: 10 ( expandable)
- Filter area: ~2,3 m²
- Chamber volume: approx. 25 l
- Voltage- Standard model: 400 V 3-phase
- Voltage- Special version: 110 V 2-phase | 230 V 1-phase | 230 V 3-phase | 460/480 V 3-phase
- Dimensions (LxWxH): 1900 x 680 x 1500 mm
- Weight: approx. 280 kg
- Application: Filtration of crude oil

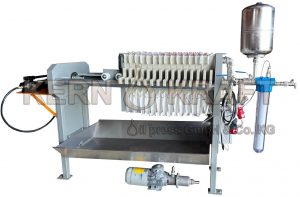

CHAMBER FILTER PRESS
KKF470/10-3
- Filter capacity*: 2000 l / ~24 h**
- Number of filter plates: 10 ( expandable)
- Filter area: 3,9 m²
- Chamber volume: approx. 40 l
- Voltage- Standard model: 400 V 3-phase
- Voltage- Special version: 110 V 2-phase | 230 V 1-phase | 230 V 3-phase | 460/480 V 3-phase
- Dimensions (LxWxH): 1900 x 750 x 1500 mm
- Weight: approx. 370 kg
- Application: Filtration of crude oil
CHAMBER FILTER PRESS
KKF470/15-6
- Filter capacity*: 3000 l / ~24 h**
- Number of filter plates: 15 ( expandable)
- Filter area: 6,3 m²
- Chamber volume: approx. 60 l
- Voltage- Standard model: 400 V 3-phase
- Voltage- Special version: 110 V 2-phase | 230 V 1-phase | 230 V 3-phase | 460/480 V 3-phase
- Dimensions (LxWxH): 2700 x 1000 x 2000 mm
- Weight: approx. 1000 kg
- Application: Filtration of crude oil
CHAMBER FILTER PRESS
KKF630/20-6
- Filter capacity*: 7500 l / ~24 h**
- Number of filter plates: 20 ( expandable)
- Filter area: 13 m²
- Chamber volume: approx. 150 l
- Voltage- Standard model: 400 V 3-phase
- Voltage- Special version: 110 V 2-phase | 230 V 1-phase | 230 V 3-phase | 460/480 V 3-phase
- Dimensions (LxWxH): 4500 x 1200 x 2200 mm
- Weight: approx. 2200 kg
- Application: Filtration of crude oil
- Screening capacity: up to 25 l/h*
- Engine power/voltage: 0,19 kW | 400 V | 50 Hz
- Dimensions (LxWxH): 600 x 450 x 310 mm
- Screening area: 0,10 m²
- Weight: aprox. 20 kg
- Application: Preliminary filtration of crude oil
- Screening capacity for oil: up to 50 l/h*
- Screening capacity for flour: Control screening: max. 4000 kg/h** Fine screening: max. 500 kg/h**
- Engine power: 0,62 kW | 400 V | 50 Hz
- Dimensions (LxWxH): 1070 x 600 x 660 mm
- Screening area: 0,24 m²
- Weight: approx. 90 kg
- Application: Preliminary filtration of crude oil, flour sifter
- Screening capacity for oil: up to 100 l/h*
- Screening capacity for flour: Control screening: max. 8000 kg/h** Fine screening: max. 1000 kg/h**
- Engine power: 0,62 kW | 400 V | 50 Hz
- Dimensions (LxWxH): 1270 x 800 x 660 mm
- Screening area: 0,45m²
- Weight: approx. 120 kg
- Application: Preliminary filtration of crude oil, flour sifter
