Plant components
ACCESSORIES FOR VEGETABLE SEED PROCESSING
We offer you the complete technology around the pressing of oil seeds to vegetable oils, including accessories, such as crude oil tanks, pumping tanks and oil cans. If you want to press vegetable oil in a bigger scale, you need some more components, next to the oil press and chamber filter press. Together with you, we can plan the construction of the oil processing plant. We are happy to advice you on all questions relating to the capacities, machines , logistics etc.

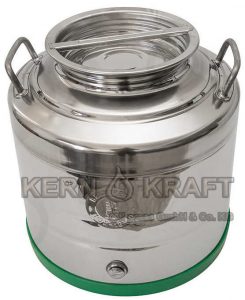

oil can 30L
- Volume : 30 l
- Design: Stainless steel, food-safe
- Dimensions Ø x H: 370 x 360 mm
- Weight: 3,5 kg
- Application: Bottling tank, crude oil tank
- Optional equipment: Stainless steel ball valve ½"

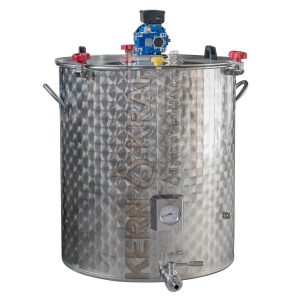

Pump tank 50l-300l
- Volume : 50 l | 100 l | 200 l | 300 l
- Engine power: 0,09 - 0,37 kW
- Voltage: 230V/1-phase
- Application: Crude oil tank, pumping tank, deodorization tank, dosing tank
- Optional equipment: Heating, centrifugal pump

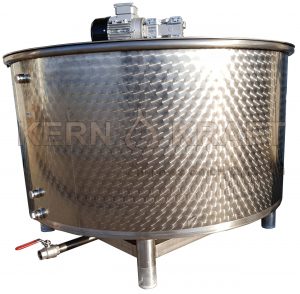

crude oil tank with
agitator
- Volume : 700 l | 1200 l
- Engine power stirrer: 1,5 kW
- Voltage: 400V/3-phase
- Application: Crude oil tank, deodorization tank
- Optional equipment: Heating, insulation

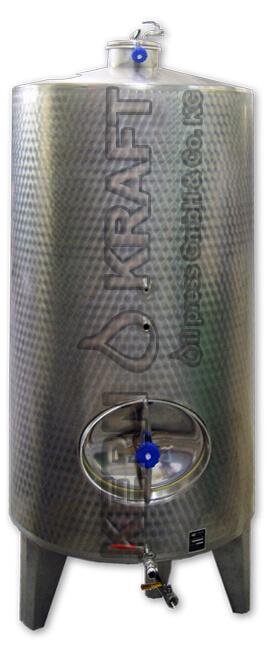

crude oil tank with
agitator
- Volume : 2000 l | 3300 l | 5000 l | 10000 l
- Engine power stirrer: 1,5 kW
- Voltage: 400V/3-phase
- Application: Crude oil tank, deodorization tank
- Optional equipment: Heating, insulation
heated dosing screw
- Seed capacity: up to 100 kg/h*
- Engine power: 1,5 kW
- Heating capacity: 6,5 kW
- Voltage: 230 V | 400 V | 460–480 V 3-phase
- Dimensions (LxWxH): 5230 x 500 x 900 mm (+base foot/frame)
- Weight: approx. 400 kg
mixer
- Volume: 80 Liter | 120 Liter
- Engine power: 0,75 kW | 1,5 kW
- Voltage: 230V/1-phase or 400V/3-phase
- Dimensions (LxWxH): 740 x 700 x 1100 , 820 x 730 x 1200 mm
- Weight: 44 kg | 54 kg

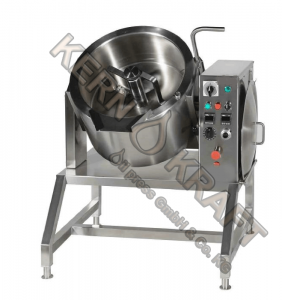

Electric roaster
with mixing
- Tank capacity: 30 liter | 70 liter
- Engine power: 6 kW | 9,5 kW
- Voltage: 400V/3-phase
- Dimensions (LxWxH): 855 x 690 x 930 mm | 1060 x 865 x 900 mm
