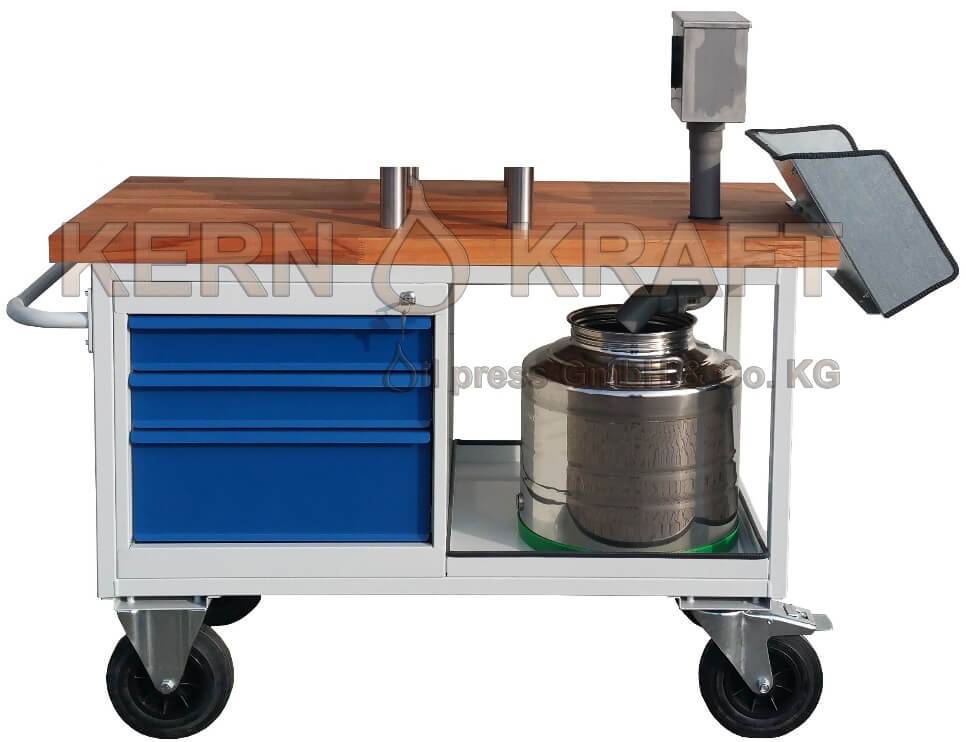

Oil press trolley without oil press / expeller



Dimensions (LxWxH): 1300 x 600 x 827 mm (height to the beech board)

Weight: approx. 125 kg

Scope of delivery:

Oil press trolley with castors, press cake slide, oil collecting box in stainless steel, oil cable feed-through in PE, crude oil can 30l in stainless steel

Special equipment:

The oil press trolley can be equiped with the following oil presses / expeller:

  • KK Oil prince F Universal
  • KK 20 F Universal or Special
  • KK 40 F Universal or Special

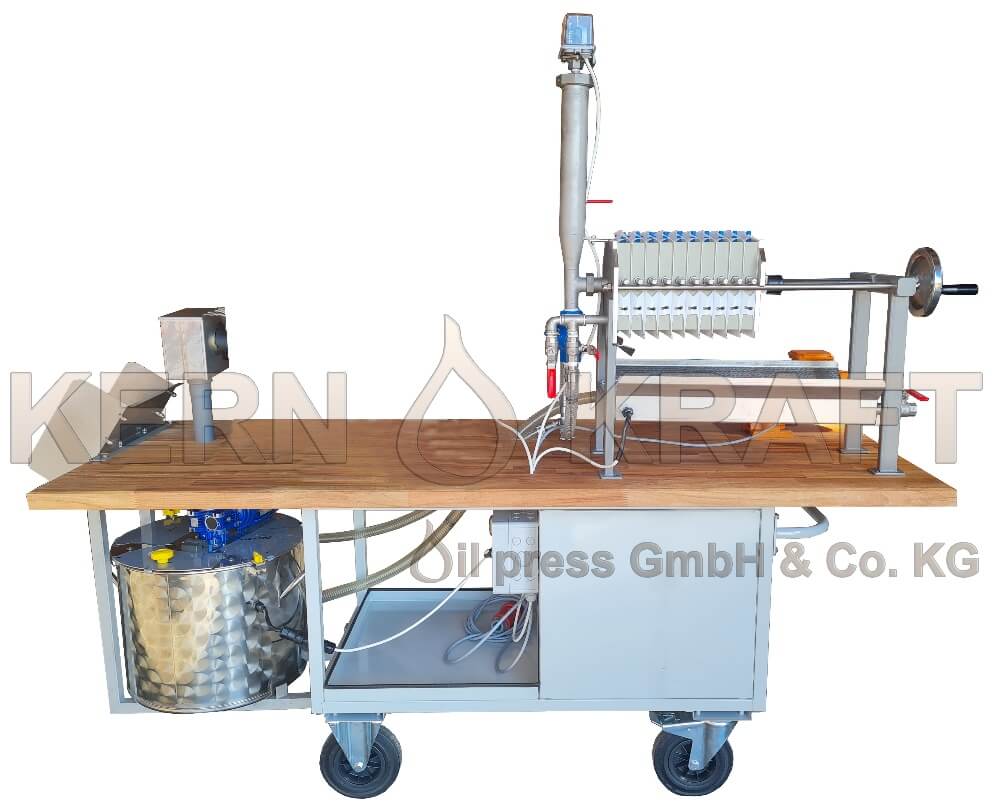

Oil press trolley with chamber filter press KKF200/10-2 without oil press



Dimensions (LxWxH): approx. 200 x 75 x 185 cm

Weight: approx. 400 kg

Scope of delivery:

Trolley

with board made of beech, castors, press cake slide, oil collecting box in stainless steel,

Chamber filter press KKF200/10-2

equipped with 10 filter plates (from HDPP) & 10 filter cloths (reusable, from PP), pressure switch, pressure gauge, filter cake tub in stainless steel, piping in stainless steel, expansion tank in stainless steel, suitable for food-stuff

  • Eccentric screw pump max. 0,3 m³/h
  • Candle filter housing (micro filter) with filter candle
  • Control cabinet (equipped with ON-OFF switch)
  • Electric connection cable (ready to plug-in)

Special equipment:

The oil press trolley can be equiped with the following oil presses:

  • KK Oil prince F Universal
  • KK 20 F Universal or Special
  • KK 40 F Universal or Special
