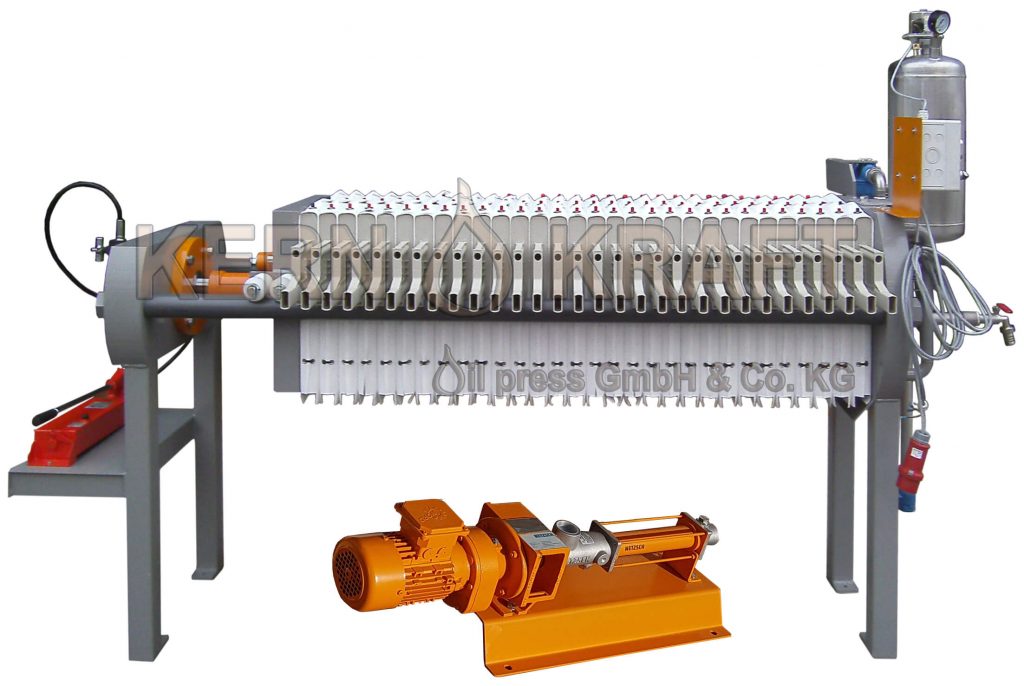

Chamber filter press KKF630/20-6



Filter capacity*: 7500 l / ~24 h**

Number of filter plates: 20 ( expandable)

Filter area: 13 m²

Chamber volume: approx. 150 l

Voltage- Standard model: 400 V 3-phase

Voltage- Special version: 110 V 2-phase | 230 V 1-phase | 230 V 3-phase | 460/480 V 3-phase

Dimensions (LxWxH): 4500 x 1200 x 2200 mm

Weight: approx. 2200 kg

Application: Filtration of crude oil

Scope of delivery:

  • Chamber filter press equipped with 10 filter plates (from HDPP) & 10 filter cloths (reusable, from PP), pressure switch, pressure gauge, filter cake tub in stainless steel, piping in stainless steel, expansion tank in stainless steel, check valve, pump runtime shutdown, Filling level shutdown, suitable for food-stuff
  • Hydraulic high pressure closure
  • Eccentric screw pump
  • Candle filter housing (micro filter) with candle filter
  • Control cabinet (equipped with ON-OFF-DELAY switch)
  • Electric connection cable (ready to plug-in)

*depending on crude oil, crude content, temperature

**in reference to rapeseed oil with 2% crude content and temperature of 25°C
