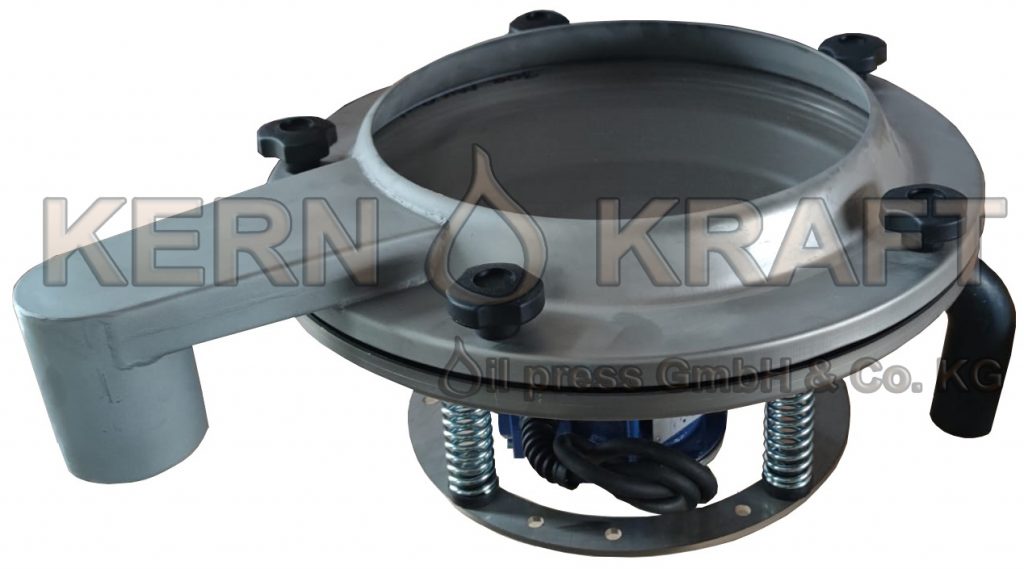

The SM400 is a compact and efficient pre-screening machine
Designed for crude oil, ideal for direct installation under an oil press or expeller. With a capacity of up to 25 L/h, a 0.19 kW motor, and a 0.10 m² screening area, it removes coarse impurities such as seed hulls, dust, and debris, ensuring clean, high-quality crude oil ready for further filtration or processing.
Its sturdy construction and simple design make it easy to integrate into small-scale oil mills, farm presses, or pilot production lines. The compact footprint ensures it fits easily beneath your existing oil press setup without taking up unnecessary space.
Fine mesh screens for ultra-clean oil are available.
The SM400 is the perfect solution for producers who want to maximize oil yield, ensure high-quality raw oil, and maintain a compact, efficient production setup.
- Sieve capacity for oil: up to 25 l/h
- Motor power: 0.19 kW | 400 V | 50 Hz
- Dimensions (LxWxH): 600 x 450 x 310 mm
- Sieve area: 0.10 m²
- Weight: approx. 20 kg
- Application: crude oil pre-filtration
*dependent on temperature and sediment content
- Various sieve options
- Can be installed directly under the oil press

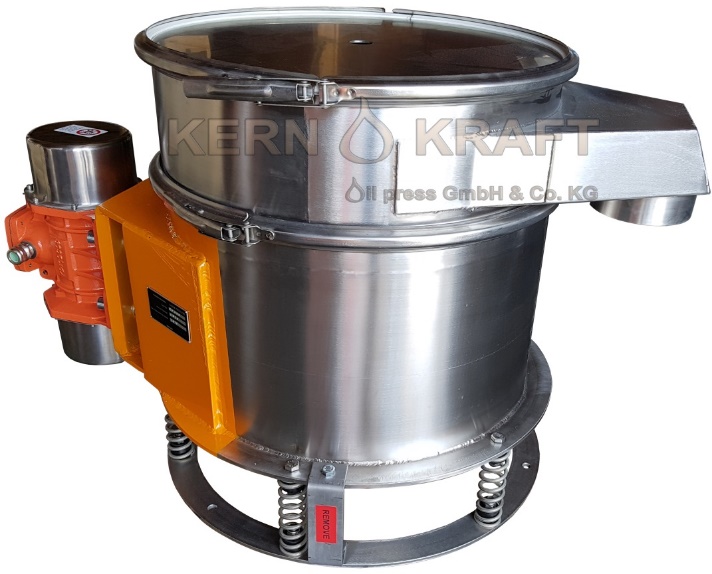

Screening machine SM600 – Efficient Pre-Filtration and Flour Screening for Oil Mills and Food Production
The SM600 is a versatile and powerful screening system designed for both oil and flour production. It handles oil at up to 50 L/h and performs flour screening at up to 4,000 kg/h for coarse screening or 500 kg/h for fine screening, ensuring consistent quality and efficiency. Equipped with a 0.62 kW motor and a 0.24 m² screening area, it separates particles reliably and supports smooth downstream processing.
Its compact dimensions (1070×600×660 mm) and weight of approximately 90 kg allow easy integration into small and medium-scale production lines, while the robust construction guarantees durability and reliable performance during continuous operation. Optional features include a pump tank, agitator, and multi-deck screening system, making the SM600 adaptable to various production requirements.
Ideal for oil mills, flour production, and flexible food processing lines, the SM600 ensures high-quality results, increased efficiency, and a reliable workflow. Contact us today to discuss customization options and get the perfect solution for your production needs.
- Oil sieving capacity: up to 50 l/h*
- Flour sieving capacity: control sieving: max. 4000 kg/h**, fine sieving: max. 500 kg/h**
- Motor power: 0.62 kW | 400 V | 50 Hz
- Dimensions (LxWxH): 1070 x 600 x 660 mm
- Sieve area: 0.24 m²
- Weight: approx. 90 kg
Application: crude oil pre-filtration, flour sieving
*dependent on temperature, sediment content
**dependent on temperature, oil content, fiber content, particle size distribution
Pump tank, agitator, oil pumps, various screens, multiple decks possible

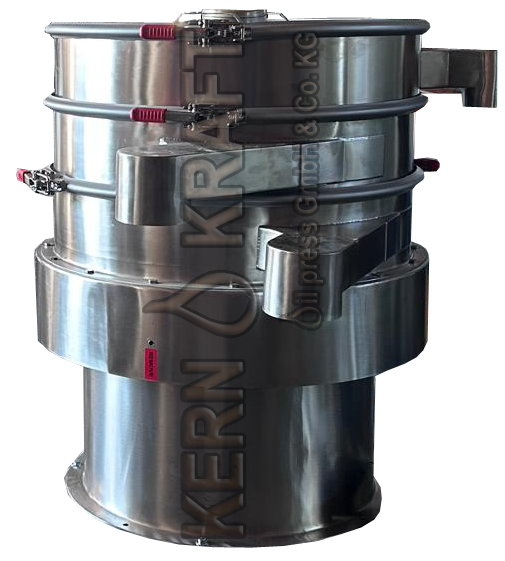

Screening machine SM900 - large screening machine for flour and protein powder from press cake
This high-performance screening machine is designed to efficiently separate fine flour and protein powder from press cakes after oil extraction and milling. Equipped with high-quality plates and screens, it ensures precise, consistent separation of fine particles from coarse residues, producing multiple fractions depending on the number of installed screens.
Built for efficiency and long-term durability, the machine features robust German engineering for reliable, continuous operation. Its design guarantees clean, uniform flour or protein powder suitable for food production, animal feed, or specialty applications.
Compact yet powerful, it integrates easily into production lines of varying sizes, providing flexibility for small-scale artisan operations or larger industrial setups. Optional configurations, such as multi-deck screens or additional feed systems, allow customization to match specific processing requirements.
Ideal for mills, oil presses, and protein extraction facilities, this screening machine ensures high-quality results, optimized workflow, and consistent product standards. Contact us today to explore tailored solutions for your production needs.
- Screening capacity for oil: up to 100 l/h*
- Screening capacity for flour: Control sieving: max. 8000 kg/h**, fine sieving: max. 500 kg/h**
- Engine power: 1,1 kW | 400 V | 50 Hz
- Dimensions (LxWxH): Approx. 1200 x 1200 x 1300* mm, H: depending on screens *with 3 screens
- Screening area: 0,63 m²
- Weight: approx. 250 kg
Application: Preliminary filtration of crude oil, flour-and protein sifter
*depending on temperature and crude content
**depending on temperature, oil content, fiber content, grain size distribution
• Stainless steel circular vibrating screen with up to 3 screens
• Screen deck
• Discharge chutes
• Self-cleaning system (ball knocker)
• Brush self-cleaning system
Pumping tank, agitator, oil pumps, different screens, several decks possible
