OIL PRESSES / SCREW PRESSES / expeller IN ALL MODELS
OIL PRESSES / EXPELLER FOR COLD PRESSING OF VEGETABLE OIL
We provide you with the know-how and technology of the entire production chain in oilseed processing – cold pressing process.
Our machines can be used to press oil out of:
- Standard seeds (sunflower seeds, rapeseeds, etc.)
- Hard seeds (rose hip stones, raspberry stones etc.)
- Oil-rich seeds (cocout flakes, pumpkin seeds, flax, hemp etc.)
- Nuts (walnuts, hazelnuts etc.)
- Peeled and unpeeled seeds
- Soldier fly larvae and other insects
It is important for us that our machines can be used flexibly and universally, therefore we offer a machine adaptation for every oil seed.
- Seed capacity: up to 3 kg/h*
- Engine power: -
- Speed: bedienerabhängig
- Voltage: -
- Dimensions (LxWxH): 380 x 170 x 360 mm (with crank: 530 x 260 x 360 mm)
- Weight: 8 kg
- Seed capacity: up to 3 kg/h*
- Engine power: 1,1 kW
- Speed: ~ 50 1/min
- Voltage: 230V
- Dimensions (LxWxH): 600 x 235 x 470 mm
- Weight: 22 kg
- Seed capacity: up to 15 kg/h*
- Engine power: 2,2 kW
- Speed: 15–70 1/min
- Voltage: 400V| 3-phase
- Dimensions (LxWxH): 950 x 465 x 510 mm
- Weight: 80 kg
- Seed capacity: up to 15 kg/h*
- Engine power: 2,2 kW
- Speed: 15–70 1/min
- Voltage: 230 V | 1 or 3-phase
- Dimensions (LxWxH): 950 x 465 x 510 mm
- Weight: 80 kg
- Seed capacity: up to 20 kg/h*
- Engine power: 2,2 kW
- Speed: 15–70 1/min
- Voltage: 230V 1-phase | 400V 3-phase | 230V 3-phase
- Dimensions (LxWxH): 480 x 480 x 620 mm
- Weight: 135 kg
- Seed capacity: up to 20 kg/h*
- Engine power: 3 kW
- Speed: 15–70 1/min
- Voltage: 230V 1-phase | 400V 3-phase | 230V 3-phase
- Dimensions (LxWxH): 480 x 480 x 620 mm
- Weight: 145 kg
- Seed capacity: up to 40 kg/h*
- Engine power: 3 kW
- Speed: 15–70 1/min
- Voltage: 230V 1-phase | 400V 3-phase | 230V 3-phase
- Dimensions (LxWxH): 550 x 475 x 630 mm
- Weight: 200 kg
- Seed capacity: up to 40 kg/h*
- Engine power: 4 kW
- Speed: 15–70 1/min
- Voltage: 230V 1-phase | 400V 3-phase | 230V 3-phase
- Dimensions (LxWxH): 550 x 475 x 630 mm
- Weight: 220 kg
oil press / expeller
KK80 F Universal
- Seed capacity: up to 80 kg/h*
- Engine power: 5,5 kW
- Speed: 15–70 1/min
- Voltage: 400V 3-phase | 230V 3-phase
- Dimensions (LxWxH): 1700 x 500 x 1260 mm
- Weight: 390 kg
oil press / expeller

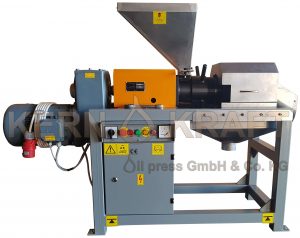

KK100 F Universal
- Seed capacity: up to 100 kg/h*
- Engine power: 7,5 kW
- Speed: 15–70 1/min
- Voltage: 400V 3-phase | 230V 3-phase
- Dimensions (LxWxH): 1710 x 550 x 1230 mm
- Weight: 390 kg
oil press / expeller
KK200 F Universal
- Seed capacity: up to 200 kg/h*
- Engine power: 9,2 kW
- Speed: 15–70 1/min
- Voltage: 400V 3-phase | 230V 3-phase
- Dimensions (LxWxH): 1870 x 500 x 1260 mm
- Weight: 470 kg
oil press / expeller
KK500 F Universal
- Seed capacity: up to 500 kg/h*
- Engine power: 18,5 kW
- Speed: 15–70 1/min
- Voltage: 400V 3-phase | 230V 3-phase
- Dimensions (LxWxH): 3029 x 860 x 883 mm
- Weight: 1700 kg
- Dimensions (LxWxH): 1300 x 600 x 827 mm (height until board made of beech)
- Weight: approx. 125 kg
- Dimensions (LxWxH): approx. 200 x 75 x 185 cm
- Weight: approx. 400 kg
Hydraulic / mechanical
oil press
- Loading chamber volumen ~15 liters
- Engine power: 3,1 kW
- Heating capacity: 1,8 kW
- Voltage: 400V 3-phase
- Dimensions (LxWxH): 1200 x 800 x 1600 mm
- Weight: 1230 kg
