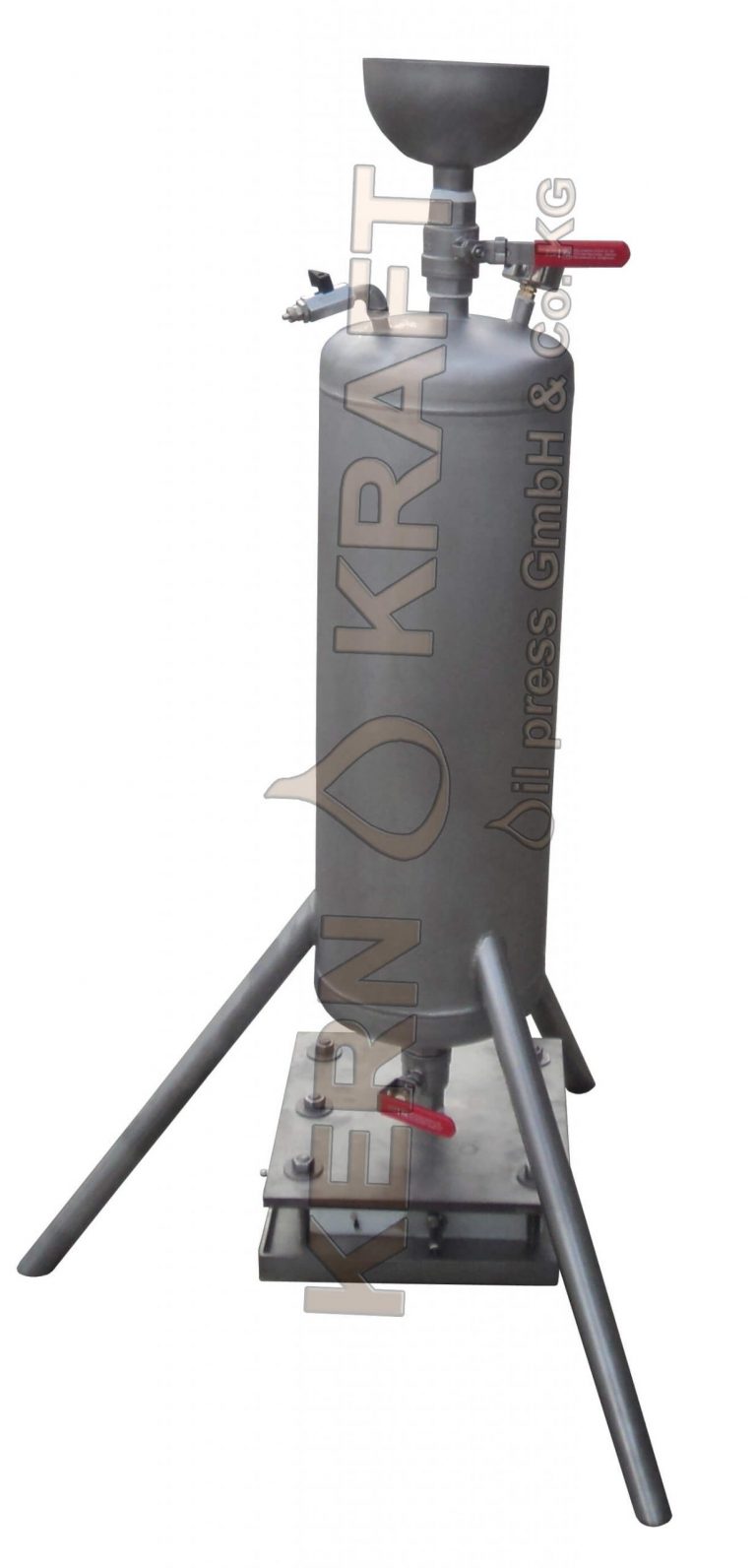

Chamber filter press KKF20
The KKF20 is a compact, high-quality filter press designed for gentle and precise filtration of plant oils. With a filtration capacity of up to 60 L per 24 hours, it is ideal for small-scale production, artisanal operations, or direct marketing. Its 20 L container system, equipped with 2–6 HDPP filter plates (0.1–0.2 m² each) and 1–2 L chamber volume, guarantees consistent, high-quality results every time.
Operating on 230 V/1‑phase, the KKF20 is lightweight and easy to handle (350×350×1200 mm, 35 kg), making cleaning and integration into existing setups straightforward. The standard package includes filter plates, filter cloths (expandable up to 6 plates), a membrane compressor, and a plug-and-play connection for immediate use.
This compact filter press is perfect for small oil mills, farm shops, or direct-to-consumer operations that require reliable, high-quality oil filtration in a simple, space-saving design. Its gentle filtration process preserves the natural flavor, color, and nutrients of the oil while ensuring clarity and stability.
Operating on 230 V/1‑phase, the KKF20 is lightweight and easy to handle (350×350×1200 mm, 35 kg), making cleaning and integration into existing setups straightforward. The standard package includes filter plates, filter cloths (expandable up to 6 plates), a membrane compressor, and a plug-and-play connection for immediate use.
This compact filter press is perfect for small oil mills, farm shops, or direct-to-consumer operations that require reliable, high-quality oil filtration in a simple, space-saving design. Its gentle filtration process preserves the natural flavor, color, and nutrients of the oil while ensuring clarity and stability.
- Filtration capacity*: 60 L / ~24 h**
- Container volume: 20 L
- Number of filter plates: 2 standard | expandable up to 6
- Filter area: 0.1–0.2 m²
- Chamber volume: 1–2 L
- Voltage – standard model: 230 V / single-phase
- Dimensions (L × W × H): 350 × 350 × 1200 mm
- Weight: 35 kg
*Depending on sludge oil, sediment content, and temperature
**Based on rapeseed oil with 2% sediment content at 25 °C
- Chamber filter press equipped with 2 filter plates (HDPP) & 2 reusable filter cloths (PP), safety valve, manometer
- Oil-free membrane compressor
- Electrical connection cable (plug-ready)
