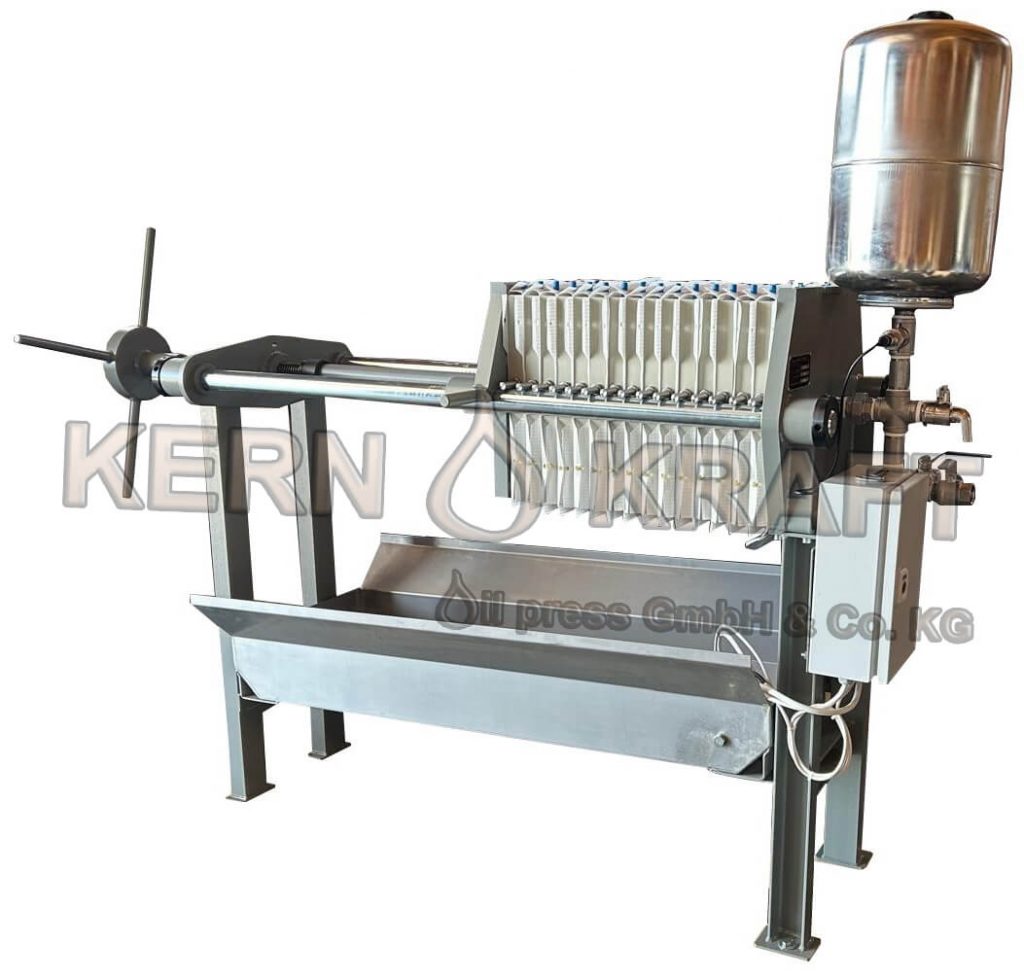

Chamber filter press KKF350/10-2
Filter capacity*: 600 l / ~24 h**
Number of filter plates: 10 standard | expandable up to 20
Filter area: ~2,3 m² | 4,6 m²
Chamber volume: approx. 20 l
Voltage- Standard model: 400 V, 3-ph | 230 V, 1-ph
Voltage- Special version: 110 V 2-ph | 230 V 1-ph | 460/480 V 3-ph
Dimensions (LxWxH): 1900 x 680 x 1500 mm
Weight: approx. 280 kg
Application: Filtration of vegetable oils (liquids)
Scope of delivery:
- Chamber filter press equipped with 10 filter plates (from HDPP) & 10 filter cloths (reusable, from PP), pressure switch/pressure gauge, filter cake tub in stainless steel, piping in stainless steel, expansion tank, check valve, pump runtime shutdown, Filling level shutdown, suitable for food-stuff
- Pump:
– Impeller pump (230V/3-ph): 1800 l/h
– Eccentric screw pump (400V/3-ph): 4000 l/h - Candle filter housing (micro filter) with candle filter
- Control cabinet (equipped with ON-OFF-DELAY switch)
- Electric connection cable (ready to plug-in)
*depending on crude oil, crude content, temperature
**in reference to rapeseed oil with 2% crude content and temperature of 25°C
